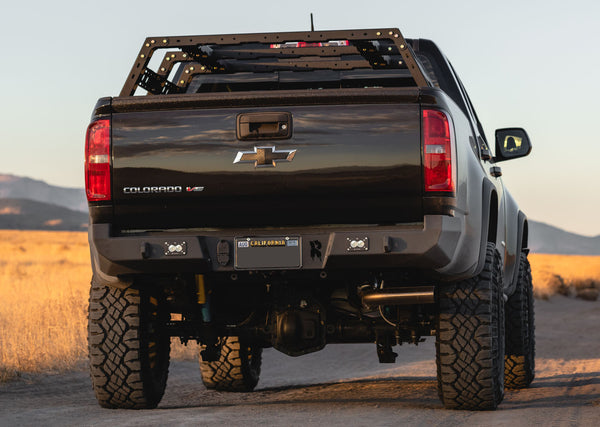

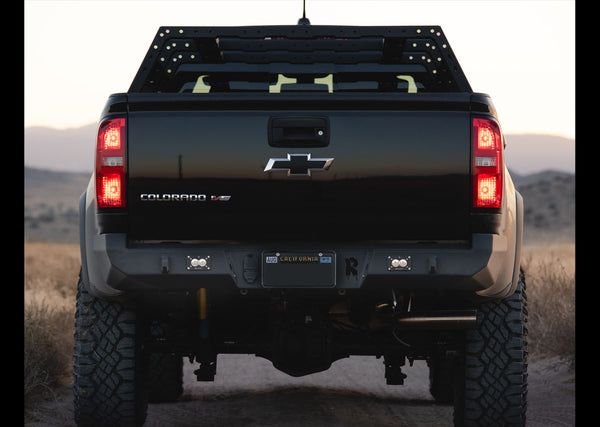

Our standard replacement style rear bumper is a great addition to your Colorado. With additional protection over the factory bumper and increased departure angle plus far more strength and tough new styling, you will be ready to hit the trails with confidence!
Bumper features:
- Laser cut and precision brake formed 3/16" HRPO Steel main structure, plus 1/4" HRPO Steel Mounting plates.
- Frame Mounted w/ 8 bolts from the factory tow hitch locations.
- Direct fit installation no vehicle modification needed.
- Integrated 3/4" thick Steel through-welded recovery points integrate direct to frame mounts for maximum strength and safety.
- Options to fit both stock trucks as well as up to a 1.5" Body lift (suspension lifts do not effect bumper mounting)
- Maintains use of factory license plate lights for ease of install.

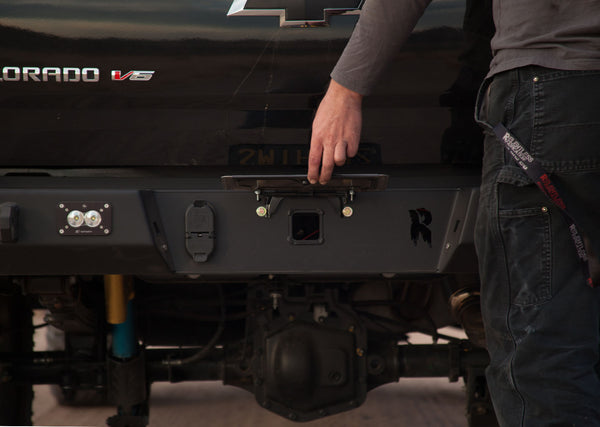

- Standard High clearance 2" receiver hitch is hidden behind the license plate (requires A flip-up license plate mount for access, sold separately) We sell one HERE. Cannot re-use/retain factory hitch.

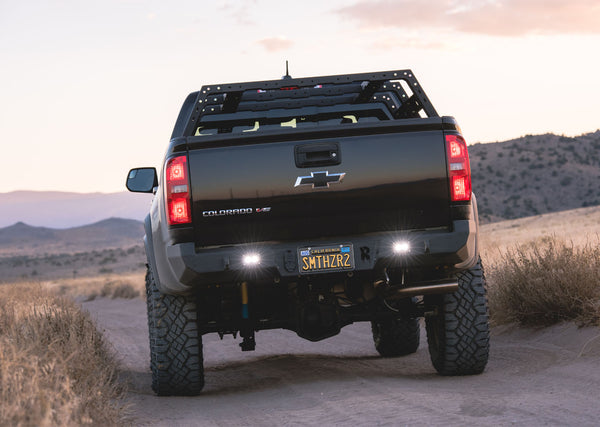

- Standard back-up/aux light cutouts for Baja Designs S2 flush mount LED's
- Standard 7-pin trailer wiring plug cutout retains the connector for ease of access and installation
- Weighs 90lbs. (stock rear bumper and hitch is 60lbs)
- Access for spare crank through Relentless "R" cutout
- Gain over 5.5" of departure clearance over stock! Over 7" of additional departure clearance on trucks with 1.5" body lifts.
- Bumpers ship raw/bare steel. A finish must be applied to prevent rust.

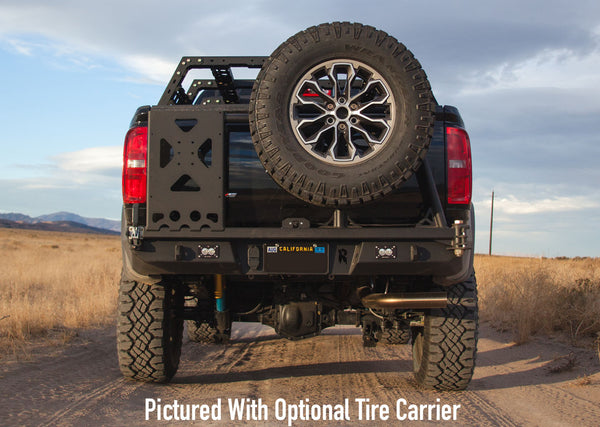

Optional Tire carrier info:
-
Carriers come standard with backing plate to mount Rotopax on left side of carrier. Bolt any Rotopax Pack mount directly to our tire carrier backing plate. (You do not need the round Rotopax base plate included with their handles to mount to our backing plate)
-
Optional add on Dual Jerry can holder will fit 2) 5-gallon Jerry cans (Flush weld seam cans only). This Jerry can holder will bolt directly to our Rotopax backing plate so you can switch it up depending on your adventure.
- Optional camp table is brake formed from 14ga Cold rolled steel and measures a generous 32" wide to fit things such as a camp stove or grill, plus cutting boards, drinks, or anything else you need a flat surface for.
- For 2026 we are making the Ultimate latch STANDARD on all tire carriers!
Purchase your Back Light lights Here
Please note when ordering a tire carrier with the bumper lead times will be extended. Tire carriers weigh approximately 65lbs.
LEAD TIMES:
All bumpers are MADE TO ORDER and lead times apply. Typical lead times are estimated at 8-12 weeks from date of order, depending on a variety of factors. When ordered with a tire carrier lead time may be extended by an additional 2 to 4 weeks. We hand build all our products in our Sparks NV shop and take great pride in our quality, we will not cut corners to ship sooner.
