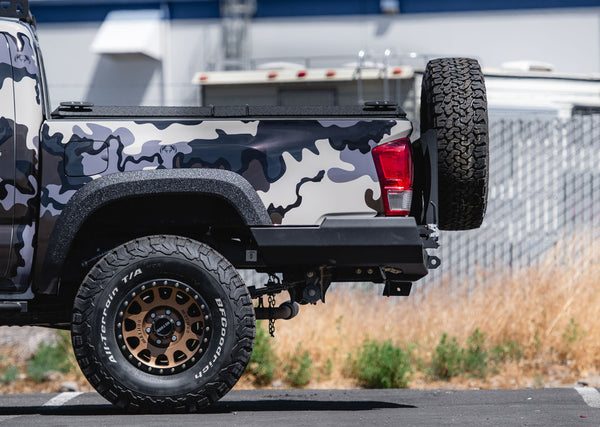

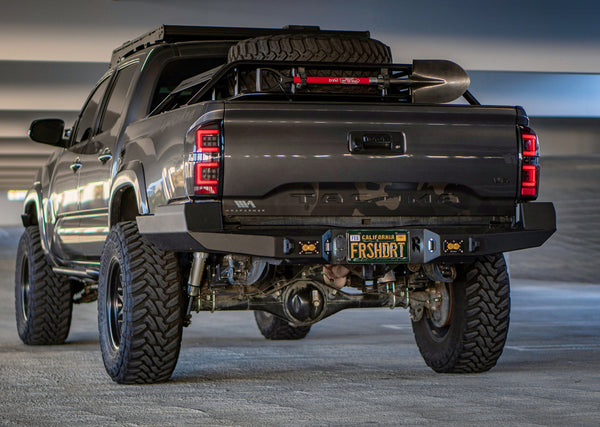

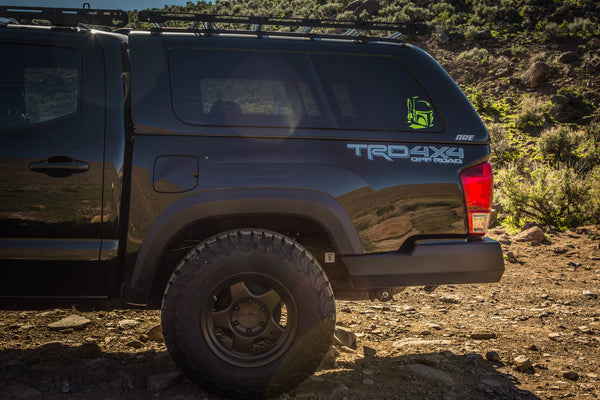

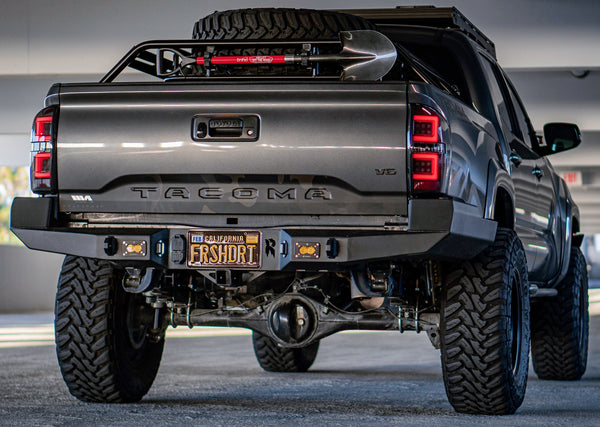

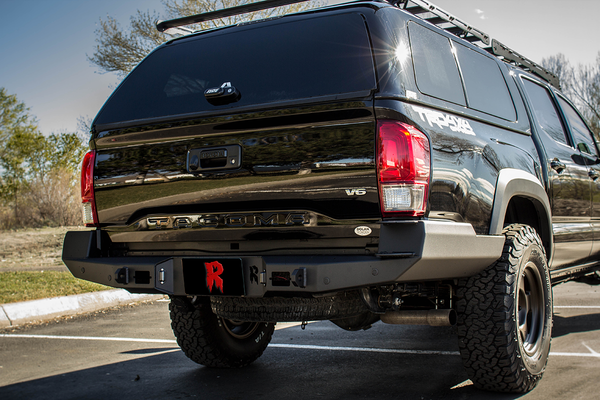

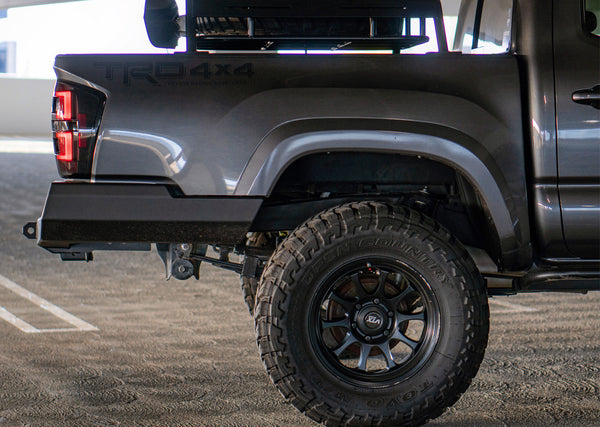

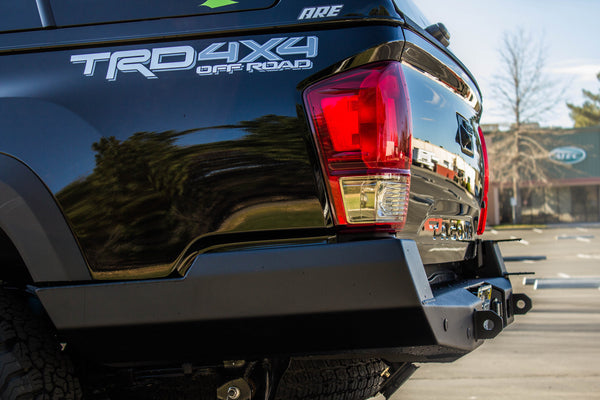

This is the ultimate rear bumper for just about any off road use on your 3rd Gen Tacoma! Whether it be overlanding, rock crawling, or just exploring mountains, desert, and urban jungle this bumper offers added protection, and departure clearance to the truck. The sides add some bedside protection, and offers a sleek but rugged look on your Tacoma.
***Requires cutting off bed side quarters near bottom of tail lights! See installation guide for details.
Specs:
- Made from laser cut and precision brake formed 3/16" HRPO steel, expertly welded and sanded smooth.
- Beefy 1/4" HRPO Steel mounting plates, bolts up directly to 5 factory locations on each frame mount, same ones the OE receiver hitch used.
- Standard 3/4" thick through-welded recovery points directly tied to frame mounts.
- Approximate weight is 140lbs base bumper weight. Carrier adds 70+lbs
- Standard 2" hitch integrated under the bumper.
- Standard back up light cutouts for Baja Designs S2 Flush Mount lights.
- Optional parking sensor cutouts.
- Blind spot monitoring system is not supported and will need to be removed upon installation. The system can then be turned off via button on Vehicle lower dash. This is not the same system as the Parking Sonar sensors which can be retained if desired.
- Factory 7-pin trailer connector harness may be too short, can be easily extended with this harness
- ALL Bumpers Ship Raw/ Bare Steel. A Finish must be applied to prevent rust.

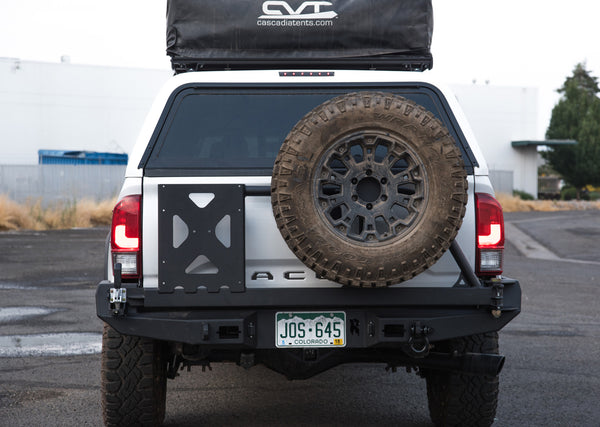

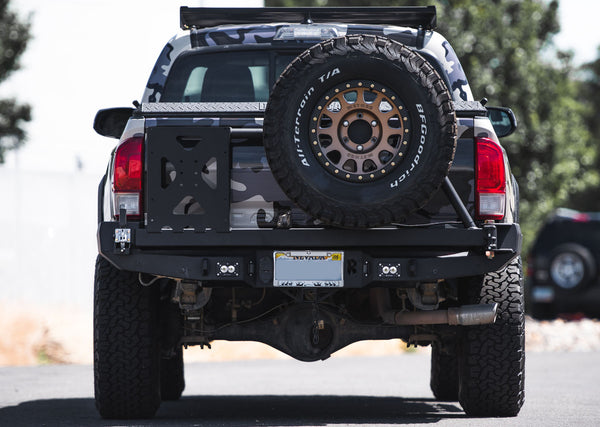

Optional Tire carrier info:
-
Carriers come standard with backing plate to mount Rotopax on left side of carrier. Bolt any Rotopax Pack mount directly to our tire carrier backing plate. (You do not need the round Rotopax base plate included with their handles to mount to our backing plate)
-
Optional add on Dual Jerry can holder will fit 2) 5-gallon Jerry cans (Flush weld seam cans only). This Jerry can holder will bolt directly to our Rotopax backing plate so you can switch it up depending on your adventure.
- Optional camp table is brake formed from 14ga Cold rolled steel and measures a generous 32" wide to fit things such as a camp stove or grill, plus cutting boards, drinks, or anything else you need a flat surface for.
Other Notes:
- - Factory license plate lights are not compatible. NEW LED license plate lights are included. Basic wiring connection cutting and splicing required.
- - Does NOT work with the factory receiver hitch! A standard 2in hitch is integrated under the bumper with with trailer plug cutout next to license plate.
- All bumpers ship freight in raw, bare metal state. A Finish coating (spray paint, bed liner, powder coat, etc) must be applied to prevent rust before installation. Powder coating available for +$270(carriers are extra) for local pick up customers. Leave a note at checkout for us to add/invoice it.
Lead times:
Manufacturing lead times apply on all bumpers, estimated 8-12 weeks from day of order. Tire carriers can add 2-4 weeks to the lead time. Please contact us prior to ordering for most up to date lead times estimate. All bumpers are hand made in our Sparks, Nevada USA location to-order by a small team of passionate off-roaders. We take great pride in the quality of work we put out and and are confident you won't find anything else like it on the market.
