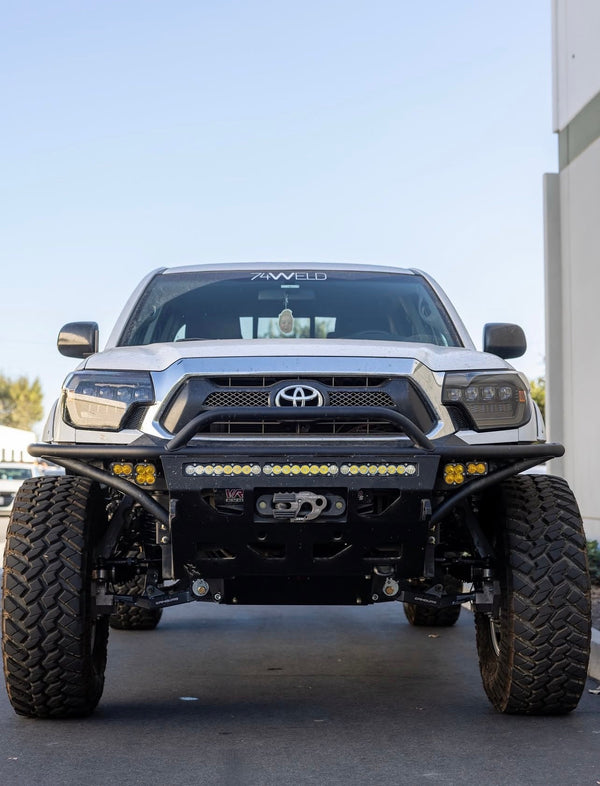

If you're looking for the ultimate front bumper for hardcore off-road use, then this is it!

We've created a comprehensive bumper and skid plate package that offers the best approach clearance possible, and is the most inclusive package we've ever offered! Everything integrates to create something far more than just the average bolt on bumper.

Through the entire design and engineering process of our Black Diamond series front bumper our intent was zero compromise and zero excess. From the start we knew we wanted the absolute most approach clearance possible without sacrificing any strength for hard hits and challenging recoveries. To start we cut out the original low-hanging front cross member ("Cross Member Delete") from under the frame and then designed our own replacement cross member that not only provides a place to attach the front of the beefy new skid plate, but it also wraps around and strengthens the front frame ends that the bumper mounts to. This design also allowed for more mounting bolt locations to be added so we could broaden and enhance the strength of the bumper over the mounting area. It also cleverly allows the bumper, cross member, and skid plate to all come together at one location which transfers stresses between each component for added strength and then gives everything a clean transition from one component to the next.

This is a complete integrated bundle includes the Black Diamond series bumper, weld-in replacement cross member, and high clearance front skid plate! PLUS:

A Winch control box relocation bracket is included! Due to the high clearance design, the winch control must be moved off the top of the winch to fit under the grille, and we include the relocation solution as standard!
OPTIONAL: Upgraded aluminum 10-row power steering cooler kit. Includes steering cooler relocation with all Aluminum cooler, mounting brackets, hardware, fittings, and necessary hoses. (Note: power steering fluid will need to be topped-off and bled, but fluid is not included with kit)

Standout features:

No compromise design! Light. Strong. No BS!
Hand made in USA quality! We design and build everything in-house
The bumper is constructed from a combination of laser cut 3/16 and 1/4" HRPO steel and 1-3/4" and 1-1/2" DOM tubing for the best balance of strength and weight.
The lower trim panel beneath the winch is made from laser cut marine-grade 1/4" thick 5052 series Aluminum.
The bumper weighs just 70-80 pounds depending on hoop option chosen!
Standard/Included front skid plate is laser cut from 3/16 HRPO steel and precision CNC press brake formed.
Bumper tube ends are shortened as standard to line up with common 2" fender/flare cuts when fitting larger tires or Long travel suspension setups.
Recessed recovery points are integrated in line with the frame mounting locations for maximum strength. Dual 1/4" plate overlays fully welded for strength, with holes sized to allow for use of common 3/4" D-ring shackles.
Light mounting brackets are welded under the upper side tubes to allow for 2-3 sets of auxiliary LED lights to be mounted to the bumper! Plus, 3 slotted mounting holes on the top plate for additional lighting in front of the grille.
Standard integrated winch mounting plate for 8000-12000lb winches.
- Note: Certain, larger bodied winches are not recommended due to grille clearance. Examples: HFT Badlands Apex, Warn Zeon, and similar are NOT recommended. Recommended winches include Warn VR Evo series, Carbon offroad winches, and other compact sized 8-12K truck/Jeep winches.

Bumper, skid, and brackets ship RAW/BARE metal and must be painted or powder coated for rust prevention before installation on vehicle.
Additional skid plates are currently in development and will be available at a later date to further complete the package and protect the transmission and transfer case.
**This product is more involved than regular bumper installs and is recommended to be done by a professional. Cutting and welding of the trucks frame is required for installation! Standard skid plate packages are not compatible with the CMD**

Lead times:

We laser cut, bend and hand build everything in our shop so there are lead times before the product is ready to ship or pick up. Generally these lead times are 8-12 weeks but can change due to things like sales volume fluctuations, raw material availability, and other factors. Please contact us prior to ordering if there are any concerns about lead time or for the most up to date lead time estimate.
