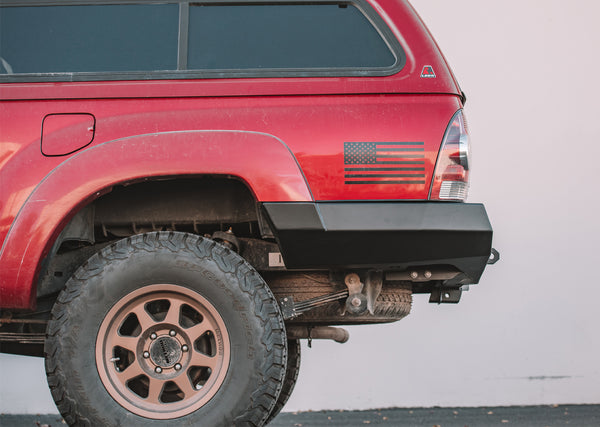

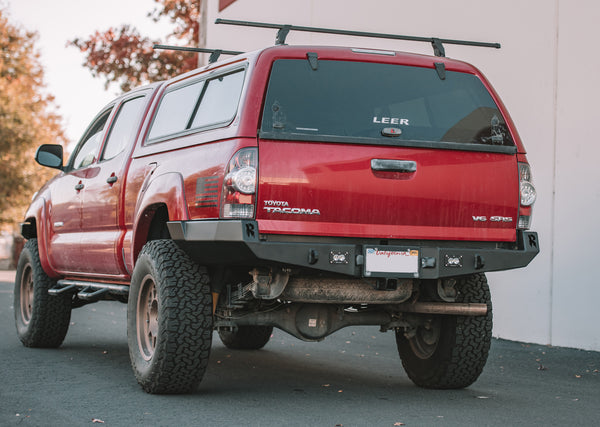

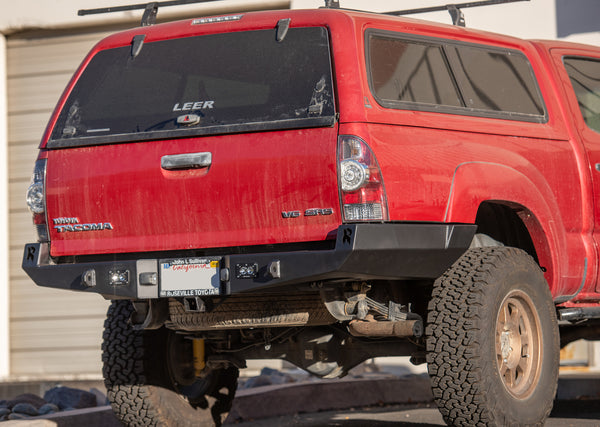

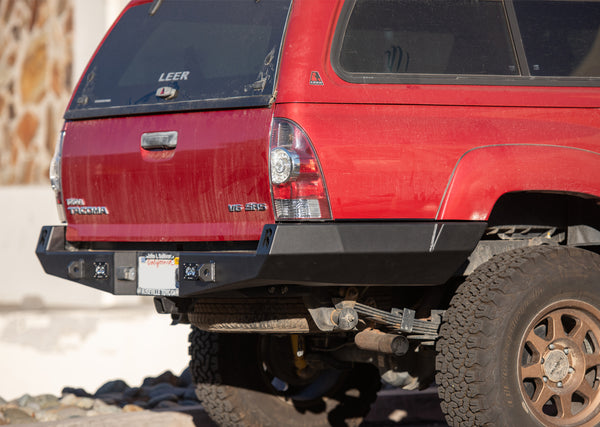

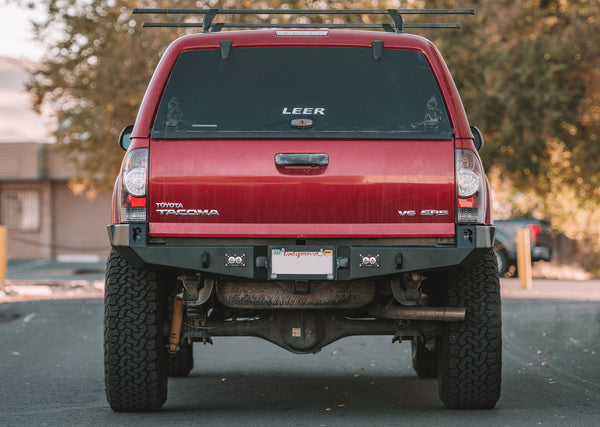

This is the 2005-2015 Tacoma High Clearance rear plate bumper. Each bumper is hand made to order from a CNC cut sheet of US steel, then CNC press brake formed and precision MIG welded together by skilled fabricators in our Nevada fab shop.
This is the ultimate rear bumper for extreme off road use, offering the maximum departure angles and side clearance while adding some bedside protection, and giving an aggressive and clean look on your Tacoma. Requires cutting off bed sides at bottom of tail lights!
Specs:
- Fits: 2005-2015 Tacoma models
- 3/16" Steel outer structure
- 1/4" Steel Mounting plates
- 3/4" Thick through-welded recovery points. Fits a 3/4" D-ring.
- Approx. weight: 130lbs.
- Mounts with the 5 factory tow hitch bolt locations per frame rail.
- Internal bracing between frame mounting and side section of bumper.
- Direct fit for factory license plate lights
- Standard with back up light cutouts for the Baja Designs S2 Flush mount lights. and the KC Hi-Lites Flush Mount FE1 (new feature)
- Cannot re-use factory hitch. New Integrated hitch options are available.
- Cutting factory bedsides is required for installation.
- Bumpers ship raw/bare steel. A finish must be applied to prevent rust.

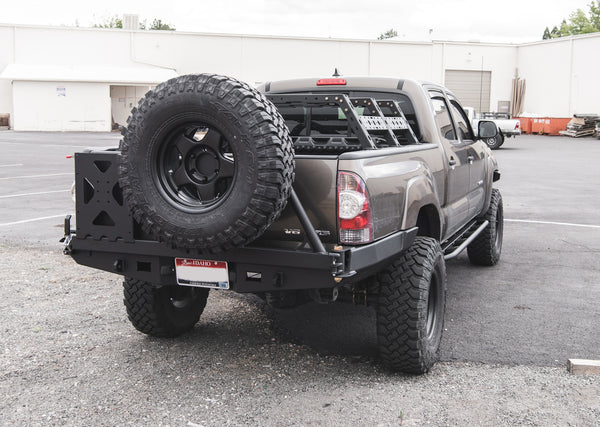

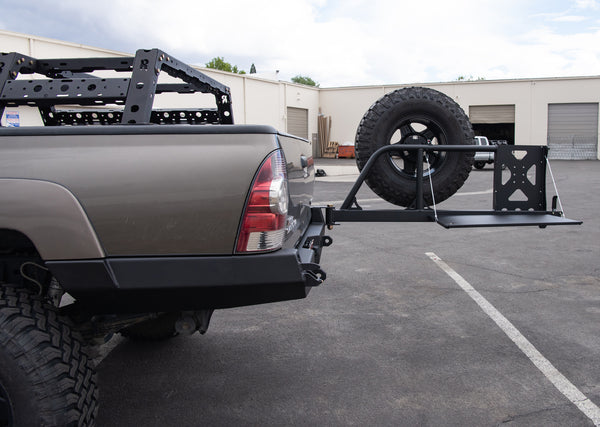

If you are interested in a tire carrier please visit our "Tire Carrier Add-On" HERE Please note tire carriers take additional time to make.
AVAILABILITY:
**Each bumper is hand built to-order in our NV fab shop: Lead times apply. Current lead time is 12-16 weeks**
*We cannot guarantee lead times on orders placed during a sale*
If you have questions on the lead times please call or email.
