Looking for the ultimate high clearance rear bumper for your new Tacoma?! Well, you've come to the right place!

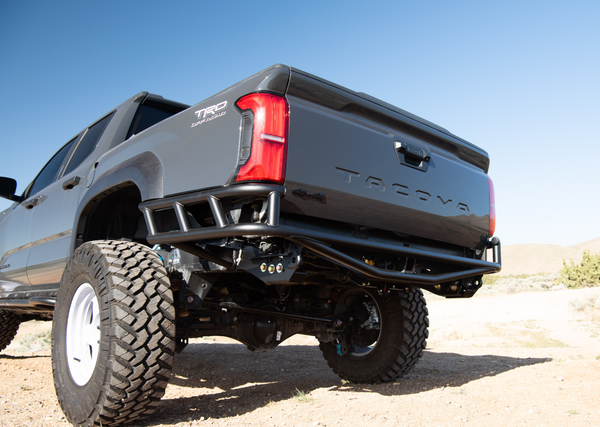

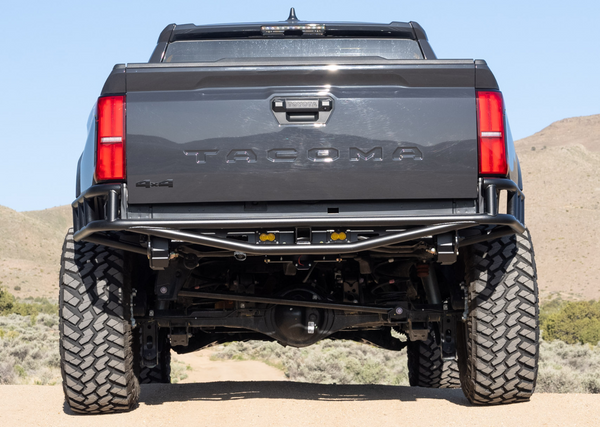

Our new "Black Diamond" series tube bumper for the 2024+ Tacoma offers ULTRA high clearance and sleek good looks. Toyota made it a difficult job for the aftermarket to gain clearance on the rear of the 2024+ Tacoma with the hitch assembly welded directly into the frame so we decided to cut it out! This is the ultimate rear bumper for extreme offroad use, offering the MOST departure angle and side clearance we've seen in a 4th Gen tacoma bumper.
Key features:
- Designed specifically for the 2024+ Tacoma models
- Optional cutouts/brackets for rear parking sensors
- Precision built with 1/4" HRPO steel mounting plates, 3/16 HRPO center section and 1.75x.120" DOM Tube construction

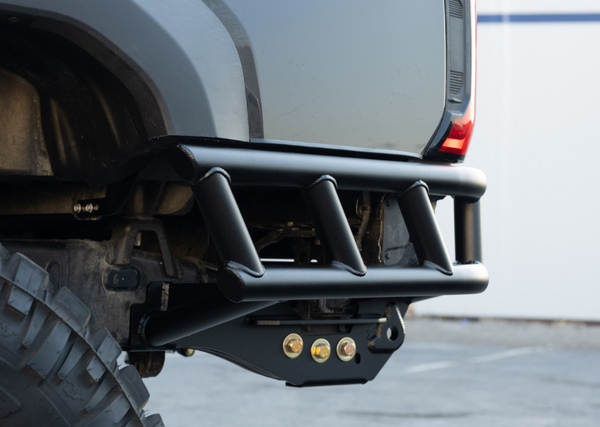

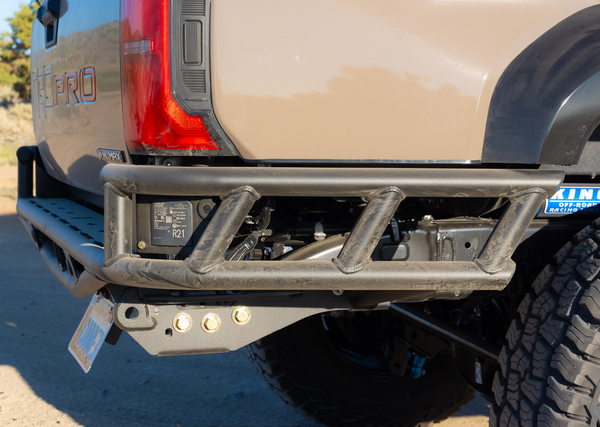

- Standard integrated and recessed recovery locations for common 3/4" D-ring.
- Approx. weight: 100lbs.(factory bumper and hitch around 60lbs removed)

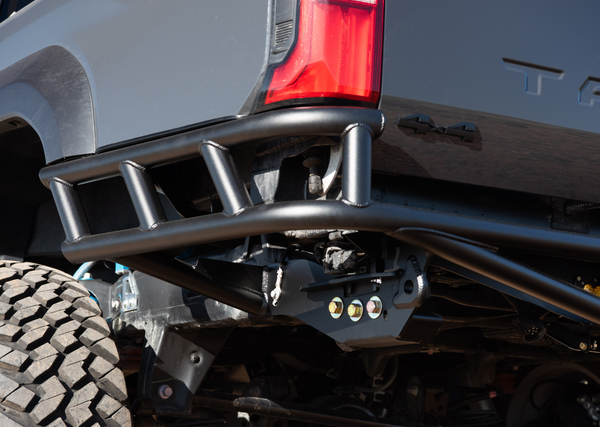

- Mounts with the 3 factory tow point bolt locations per frame rail plus smaller forward mounting points.
- Gusseted bracing between forward frame mounting area and side section of bumper featuring
- rock light mounts for a pair of KC Cyclone or Baja Designs Rock Lights (lights not included).

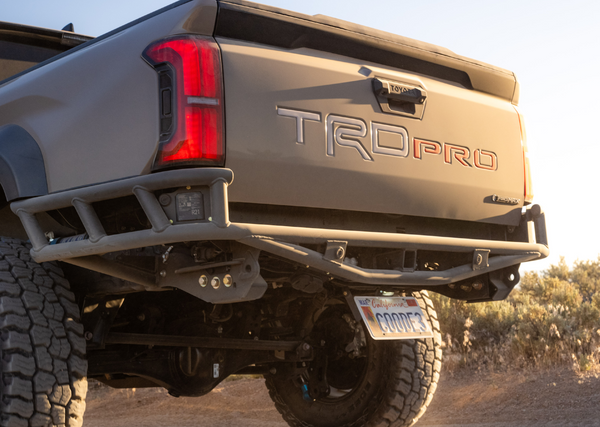

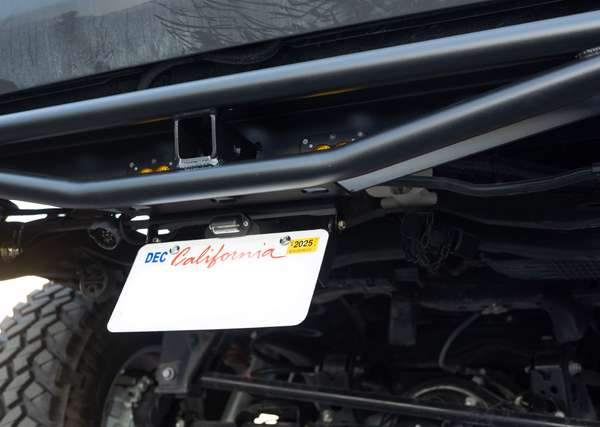

- Includes New LED License Light(splicing required) on a Custom Relentless integrated Flip up license plate mount for clearance on the trail.

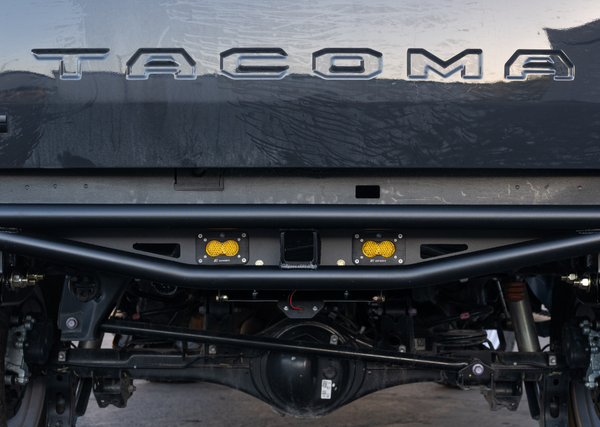

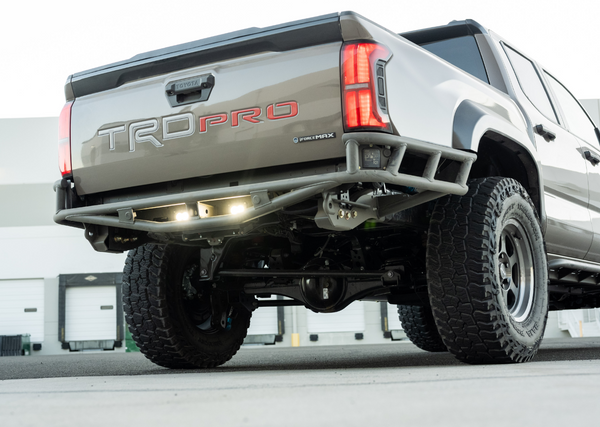

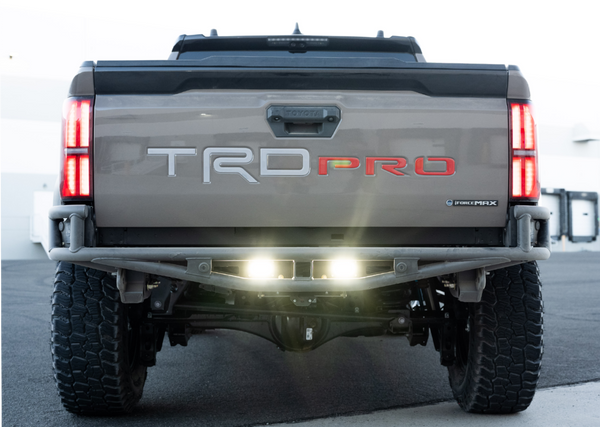

- Standard back up light cutouts for the Baja Designs S2 Flush mount lights. and the KC Hi-Lites Flush Mount FE1 (new feature)
- Integrated High Clearance Hitch (NOT towing load certified/rated)
- Trailer 7-Pin wiring connector relocation bracket included
- Bed side support brackets included
- Cutting of factory bedsides and frame is required for installation.
- Bumpers ship raw/bare steel. A finish must be applied to prevent rust.
*** Unfortunately we currently CANNOT advertise the BSM (Blind spot, cross path detection, etc) sensor as remaining functional with this bumper. A mounting bracket will be included to hold this sensor however the system may need to be turned off or calibrated by a dealer***
***This bumper is NOT AVAILABLE WITH OR COMPATIBLE WITH OUR TIRE CARRIER OFFERINGS***
Availability:
Bumpers are hand made in batches by our small detail-oriented crew. We're a 'mom and pop' small business and do not mass produce or outsource our product manufacturing, as such lead times do apply. Lead times are estimates and not hard ship dates. Current lead times are 8 to 10 weeks.
